Icon Two

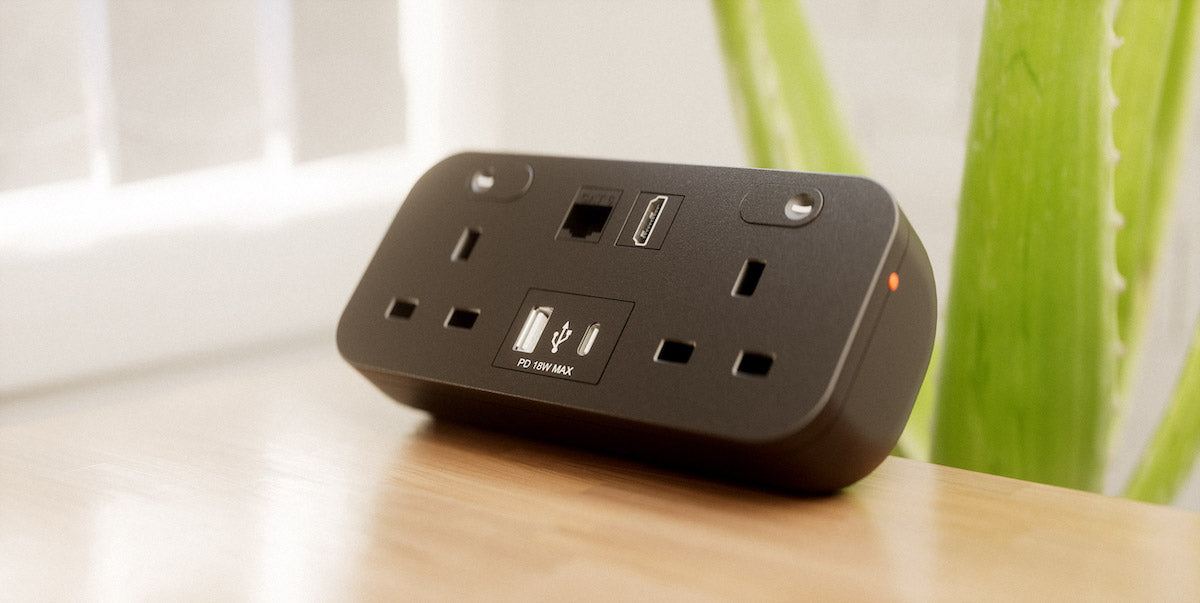

The ICON series is an end-to-end desk power solution, conforming to BS6396:2022 it utilises thermal fuses instead of traditional 20mm ceramic fuses, thus lowing the cost of ownership by avoiding engineers call outs. There are 3 ICON desktop sizes, a 1-way, 2-way, and a 4-way all of which have USB smart chargers, the standard version has PD 18W and the enhanced version offers a PD 65W output to cater for new higher powered laptops as well as mobile phones, ICON desktops are available in all black or white with desk clamps.

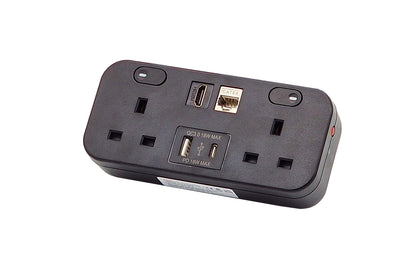

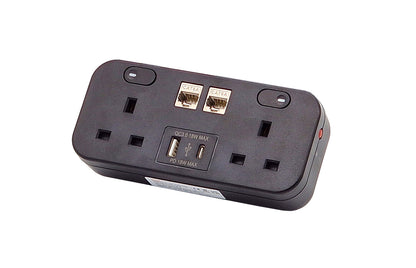

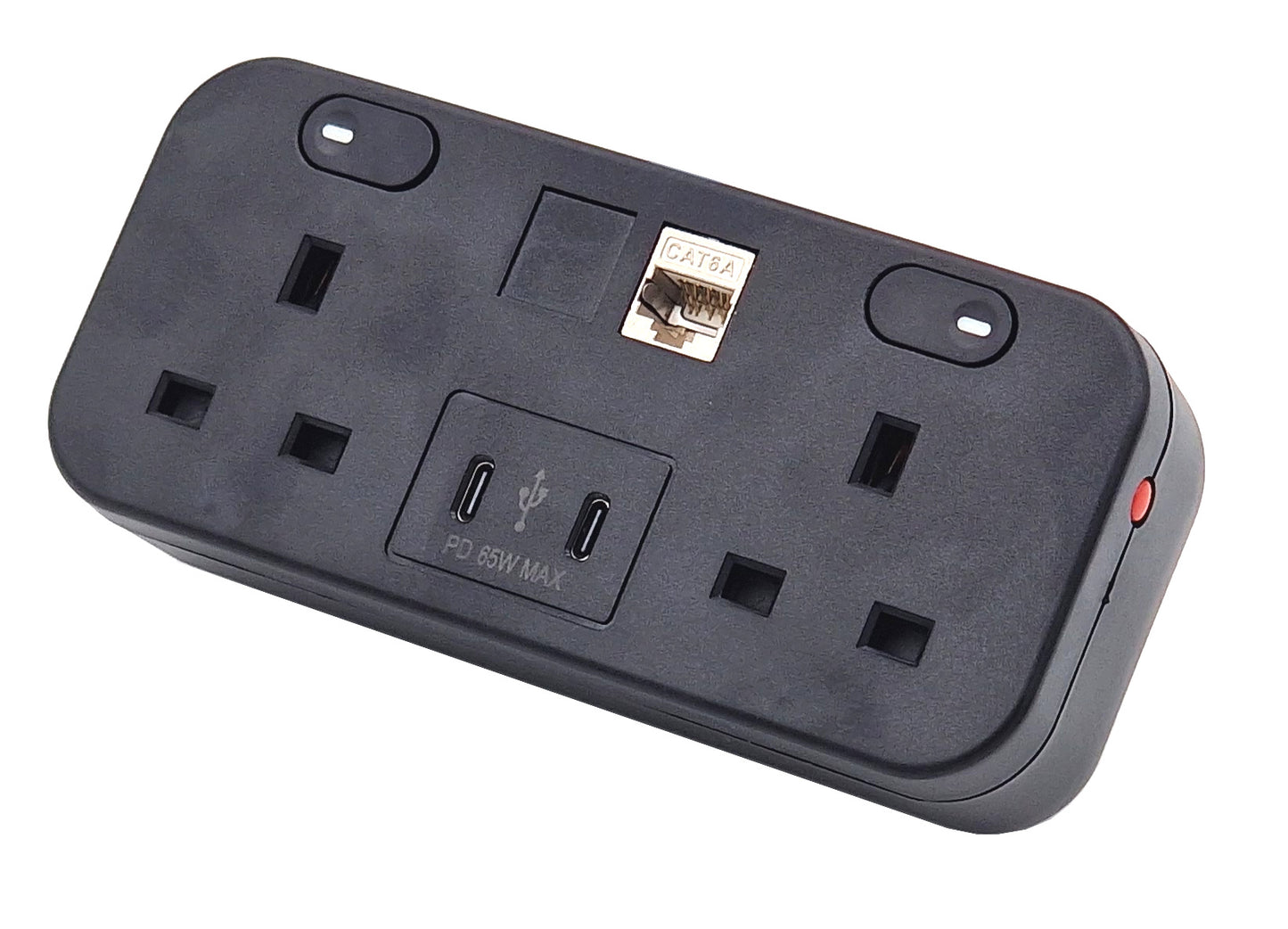

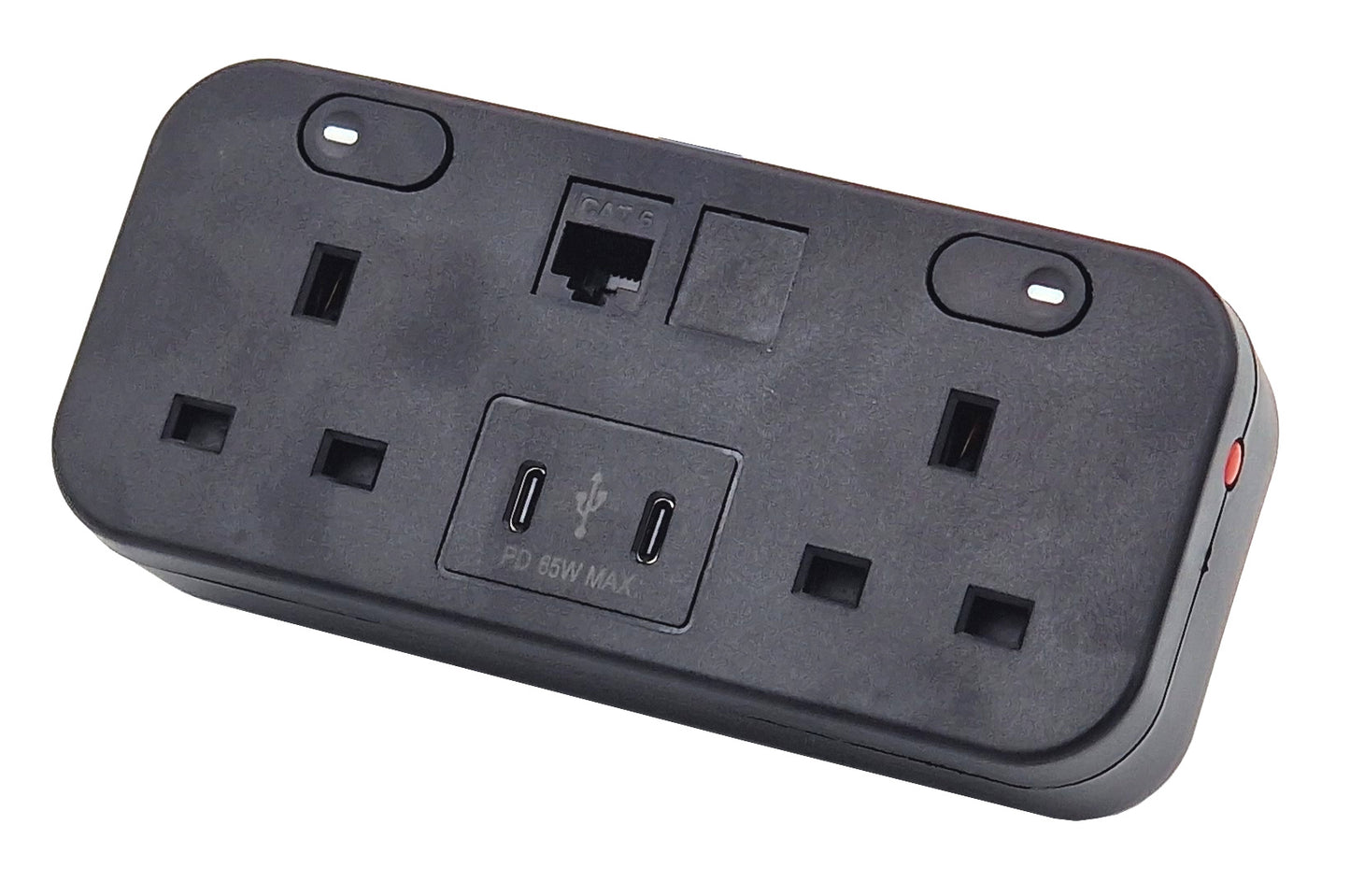

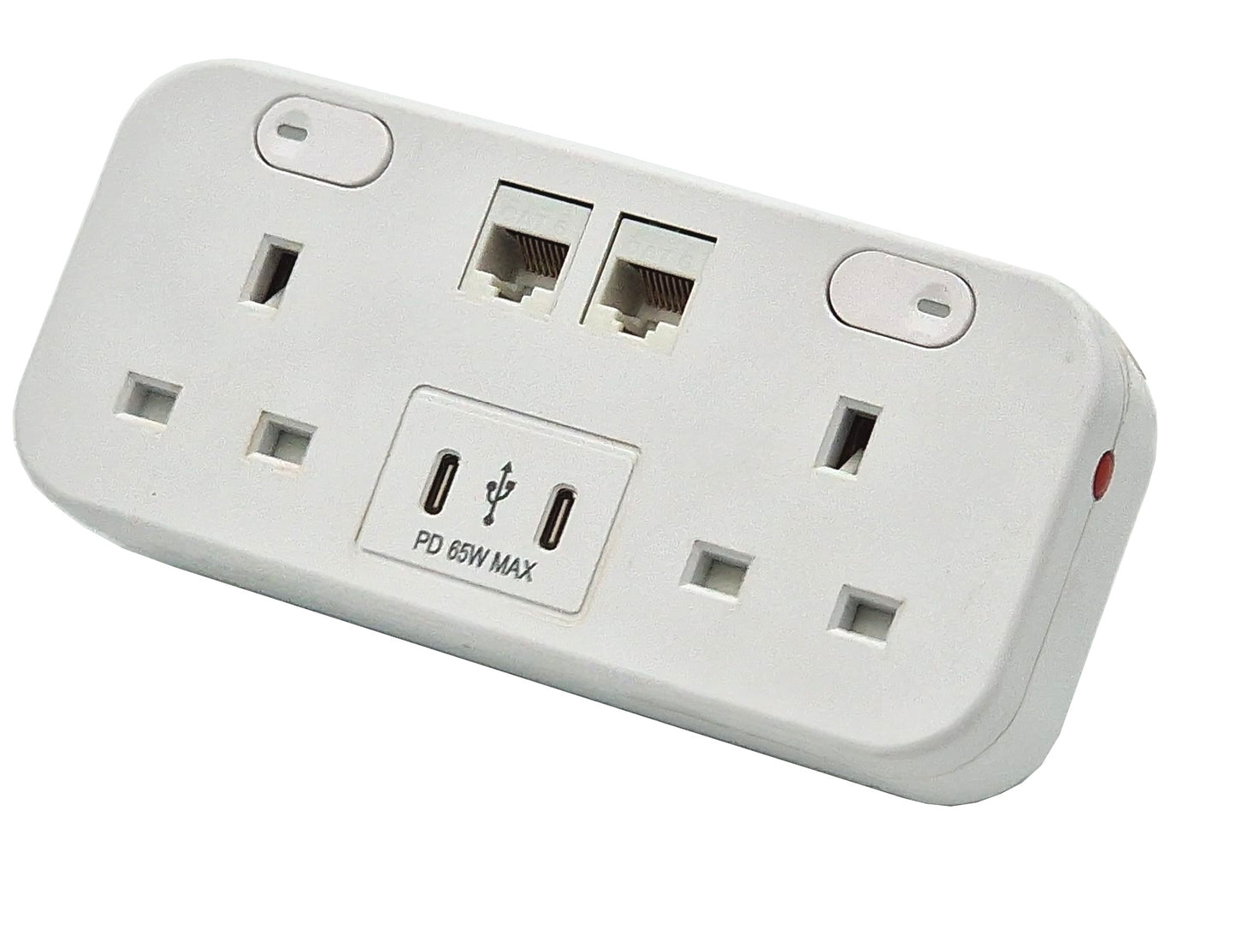

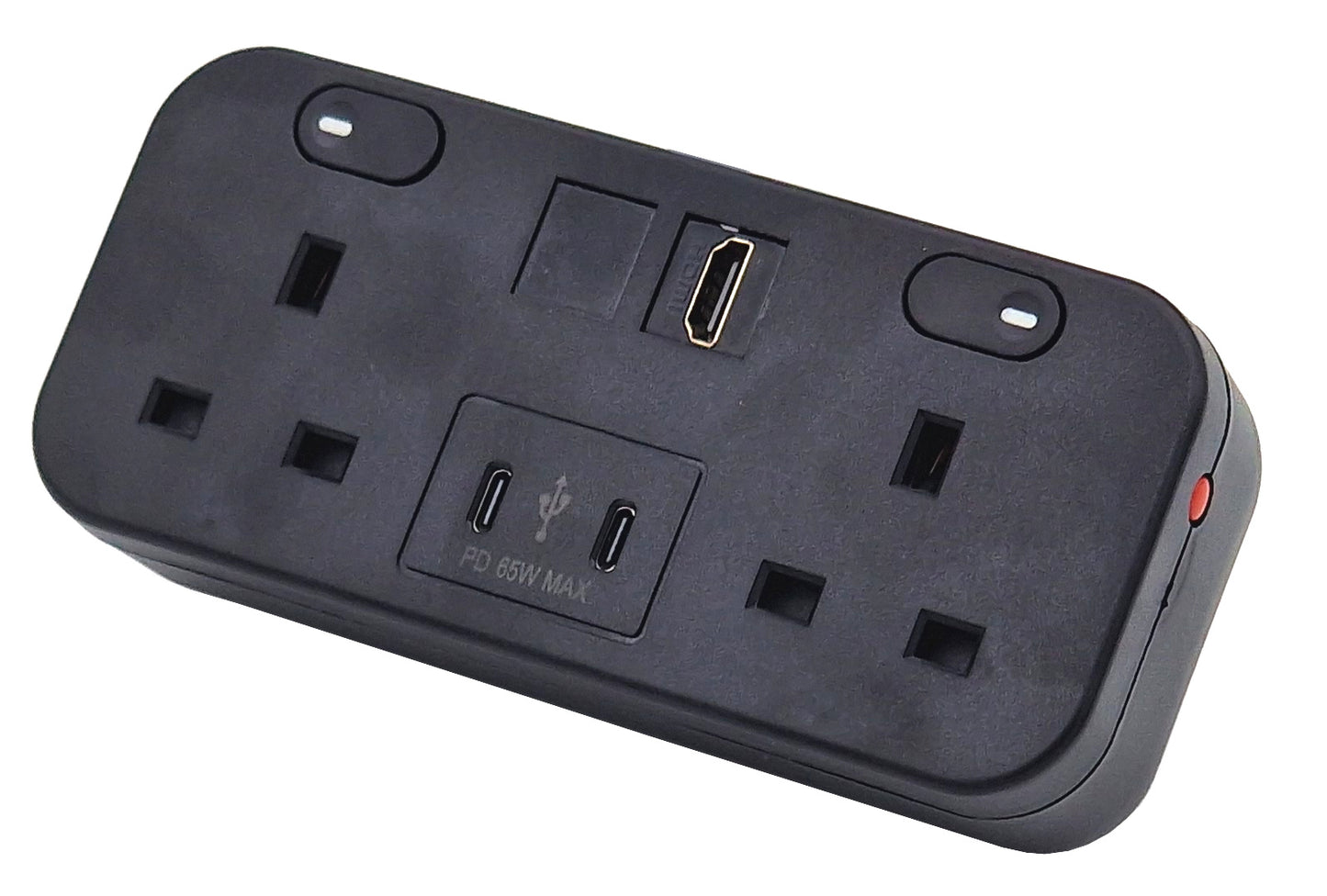

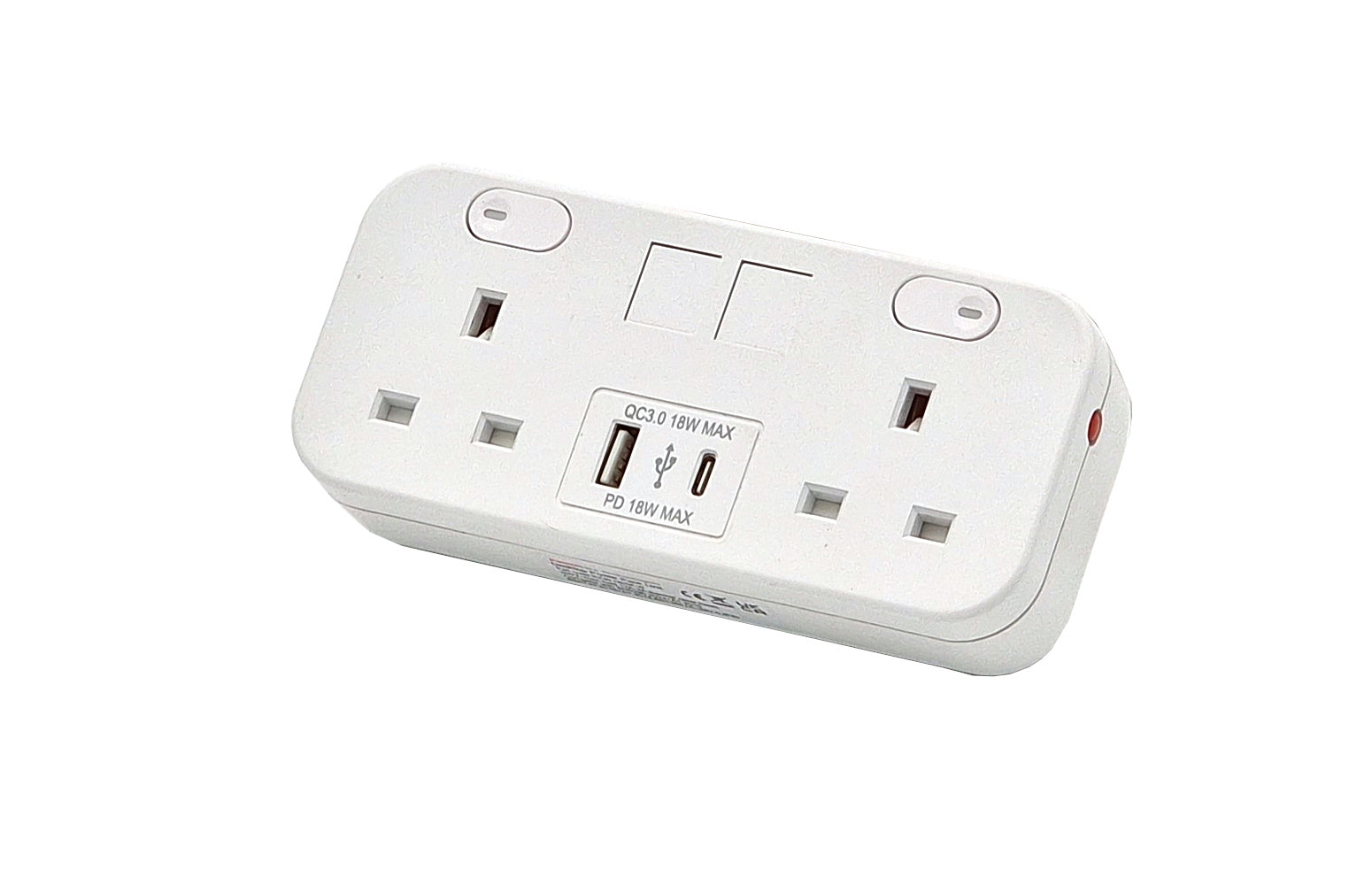

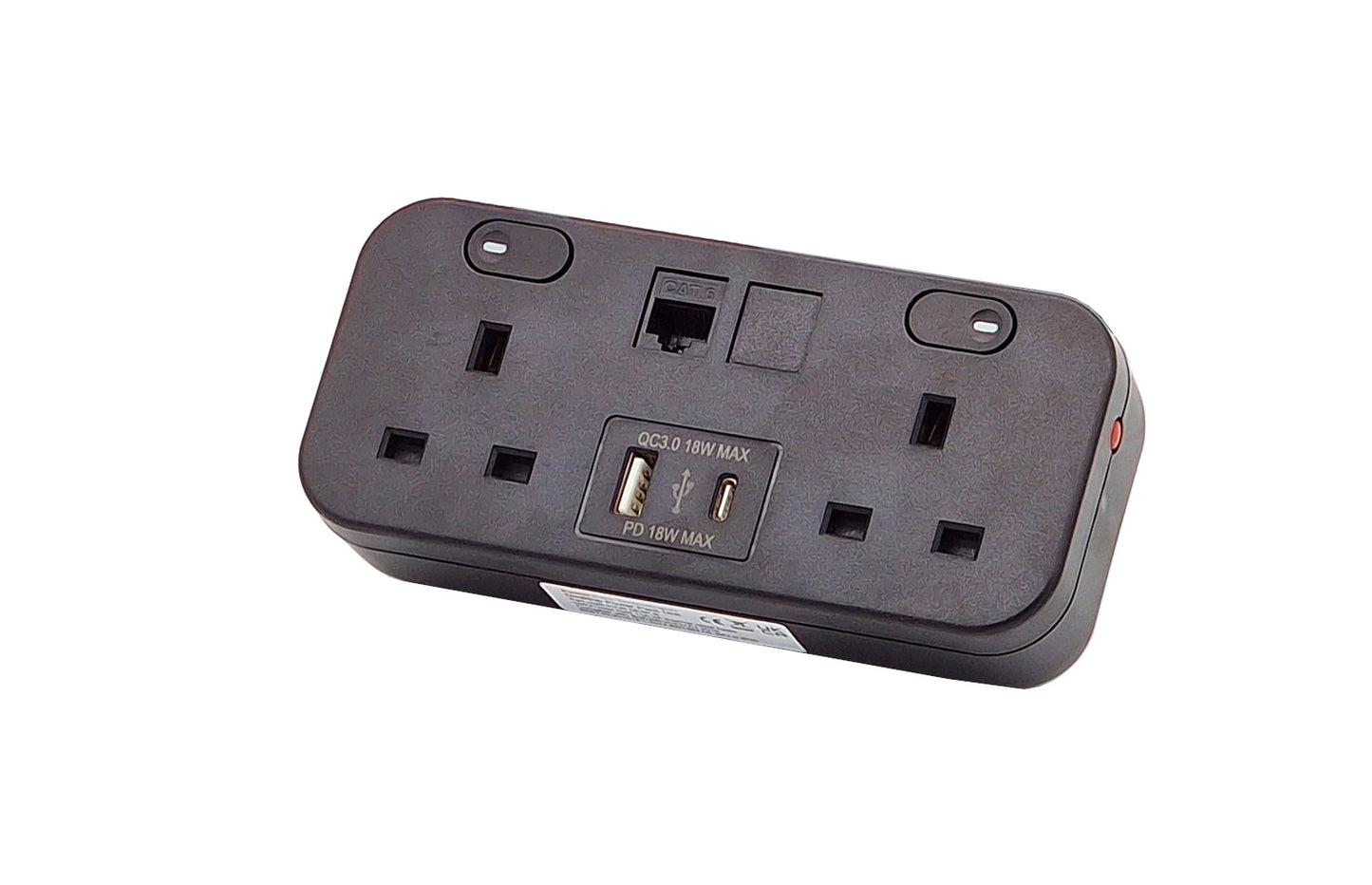

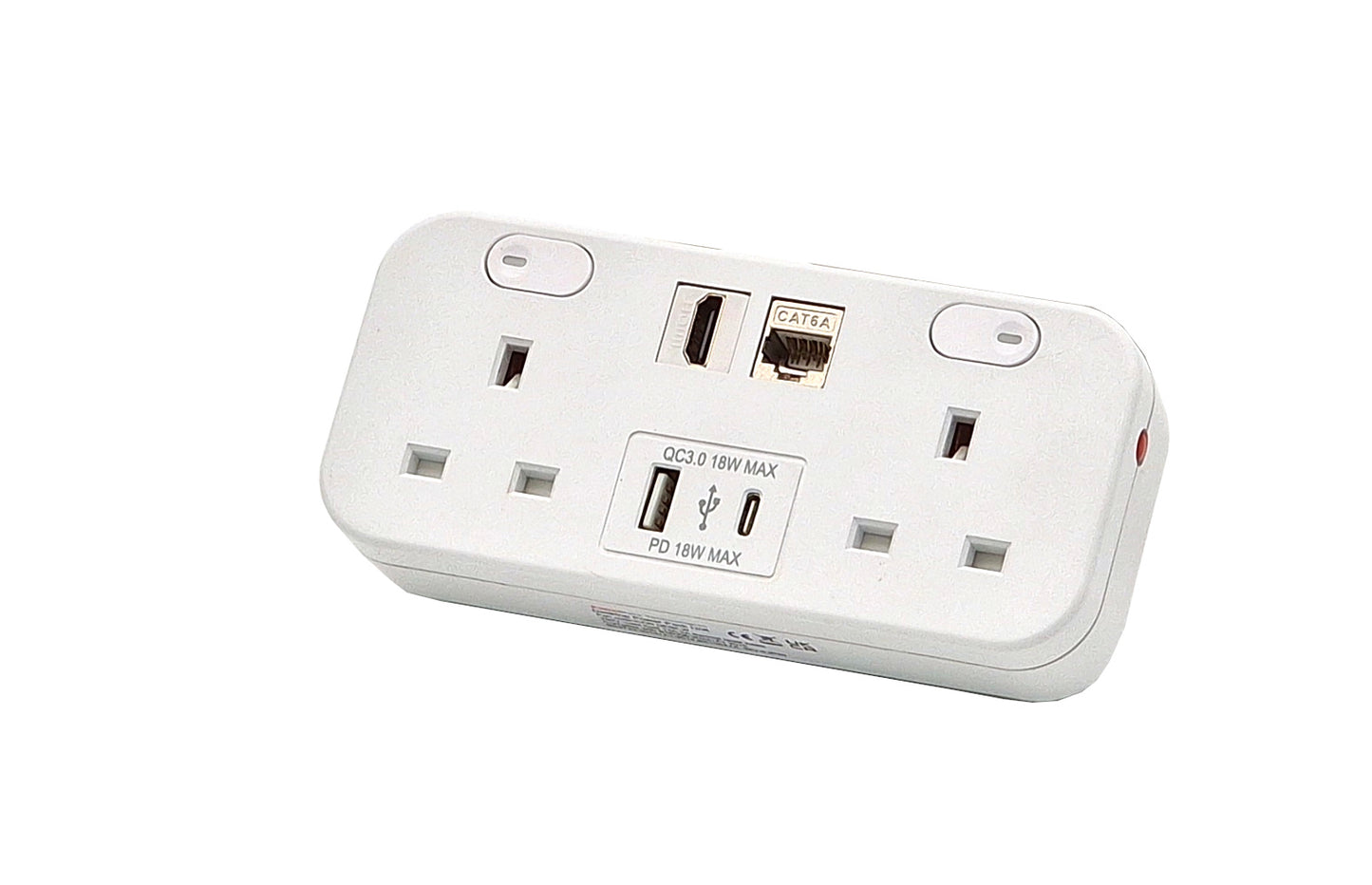

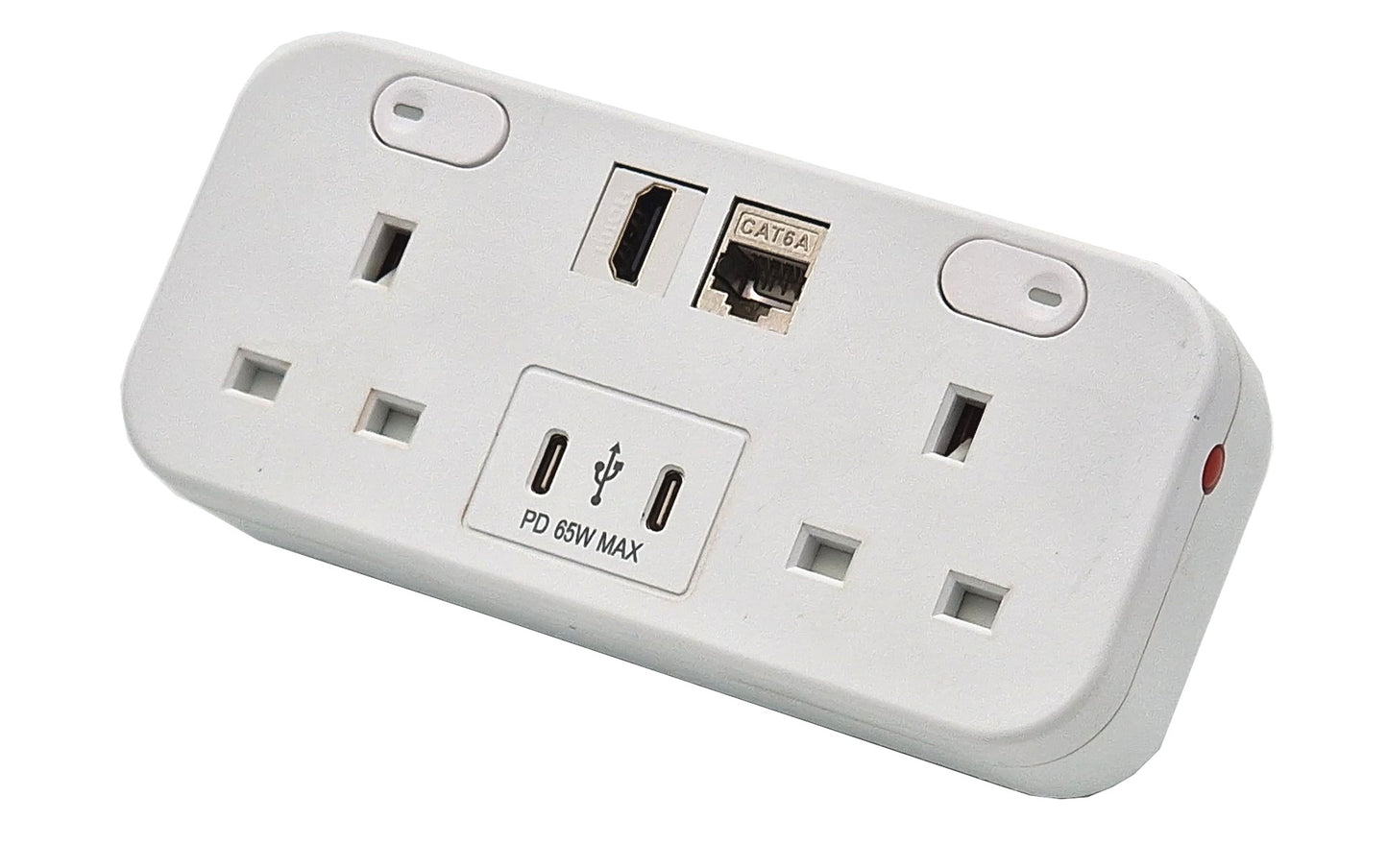

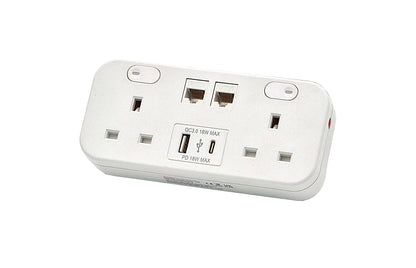

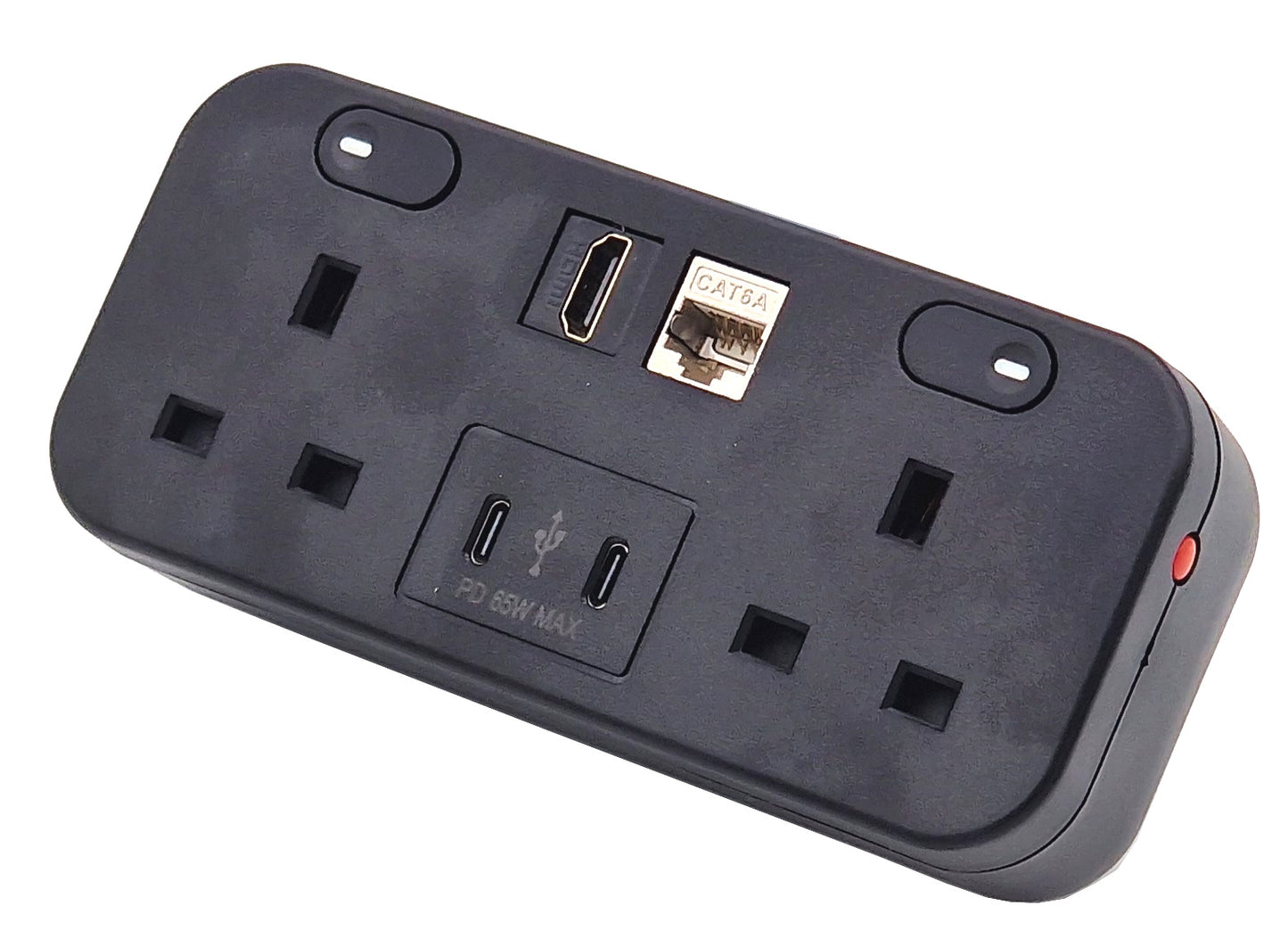

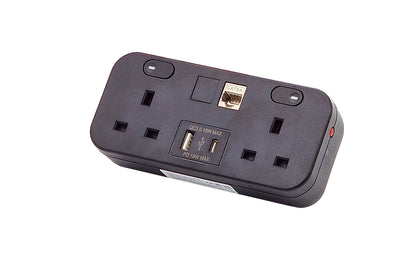

The ICON 2-way and 4-way have individually switched sockets with resettable thermal fuses to BS6396:2022, a choice of the standard PD 18W A&C charger or a powerful PD 65W dual USB C charger. Available loaded with Data, USB and HDMI couplers.

Technical Information

Each Unit has two 3.15A power sockets, plus additional Data/Charging as per variation.
PD 18W USB A: QC3.0, DC 5V3A, 9V2A, 12V1.5A.
USB-C PD, 2V/5A, 5V/3A & 9V/2A.
PD 65W USB C1 5V3A, 9V3A, 12V3A, 15V3A, 25A Total 65W max.
PD 65W C2 5V32, 9V2.2A, 12V1A, Total 20W max.
Multi use PD 65W performance USB C1 45W max, USB C2 20W max.
Available in Black or White.
Each unit has a black or white 500mm lead to male 3-pole connector.
