Icon One
The ICON series is an end-to-end desk power solution, conforming to BS6396:2022 it utilises thermal fuses instead of traditional 20mm ceramic fuses, thus lowing the cost of ownership by avoiding engineers call outs. There are 3 ICON desktop sizes, a 1-way, 2-way, and a 4-way all of which have USB smart chargers, the standard version has PD 18W and the enhanced version offers a PD 65W output to cater for new higher powered laptops as well as mobile phones, ICON desktops are available in all black or white with desk clamps.
The 2-way and 4-way versions are individually switched and have two media slots where data or AV can be added, Cat 6, Cat 6A, HDMI, Fibre, USB A or USB C are popular amongst the various combinations which can be added on site or fitted to order.

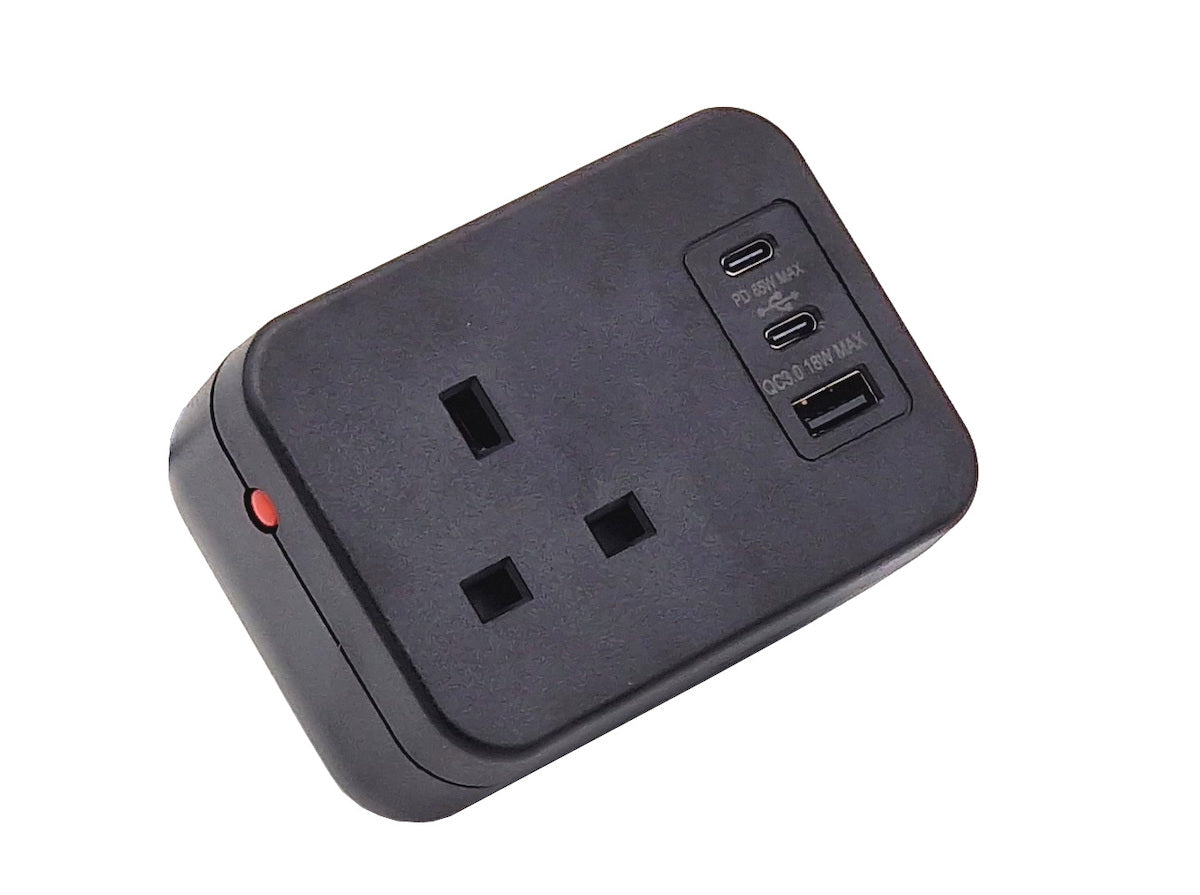

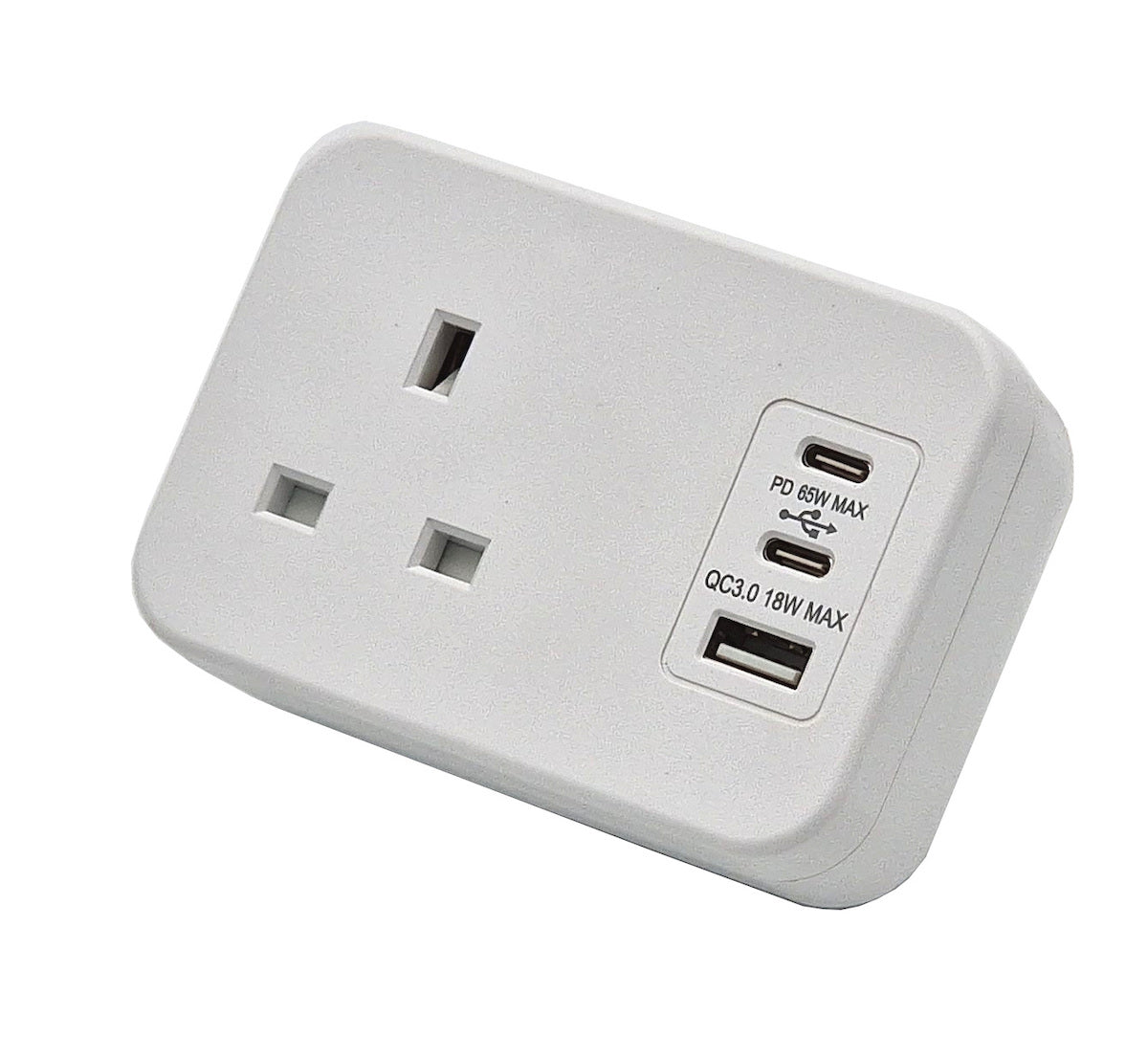

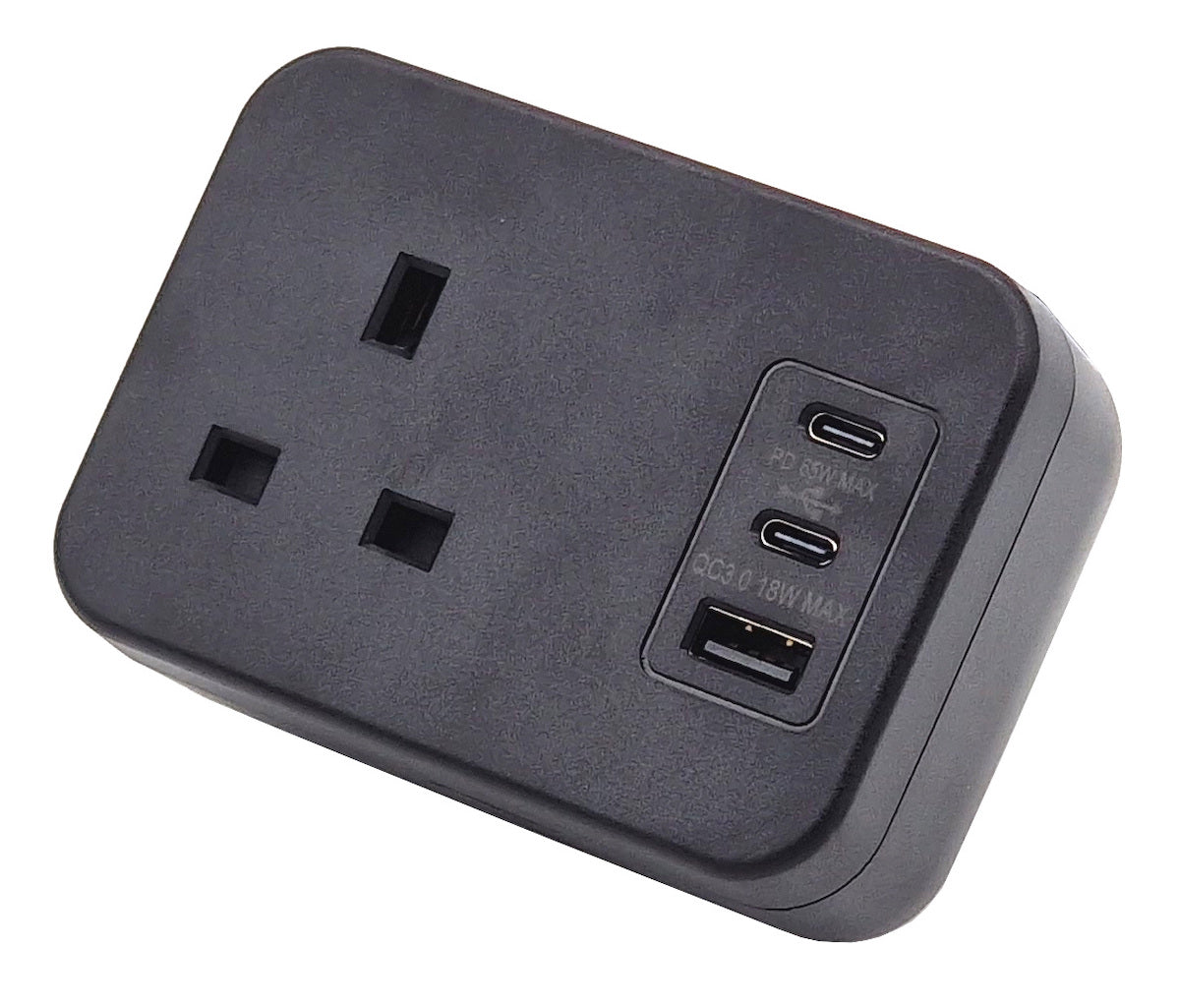

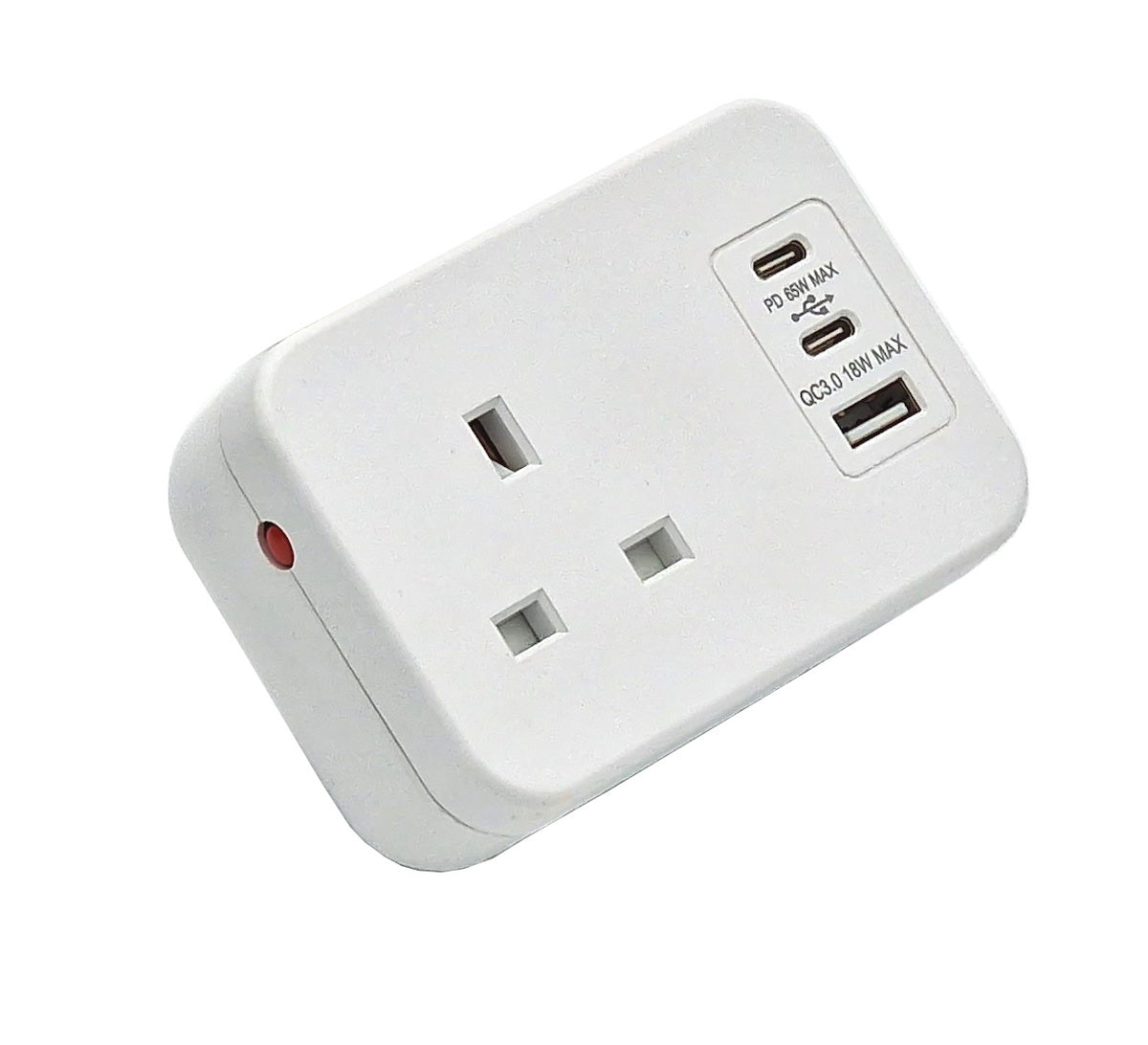

Although the smallest of footprint the ICON.ONE boosts a UK socket with 3A thermal fuse, a USB A QC (Quick Charge) and a dual USB PD (Power Delivery) chargers, available in black or white with a desk clamp.
Technical Information
PD 18W USB A: QC3.0, DC 5V3A, 9V2A, 12V1.5A.
USB-C PD, 2V/5A, 5V/3A & 9V/2A.
PD 65W USB-C (1) performance, single port output 5V3A, 9V3A, 12V3A, 15V3A, 20C3 25A Total 65W, USB-C (2) 20W.
Multi use PD 65W performance USB C (1) 45W, USB C (2) 20W and USB A 18W.

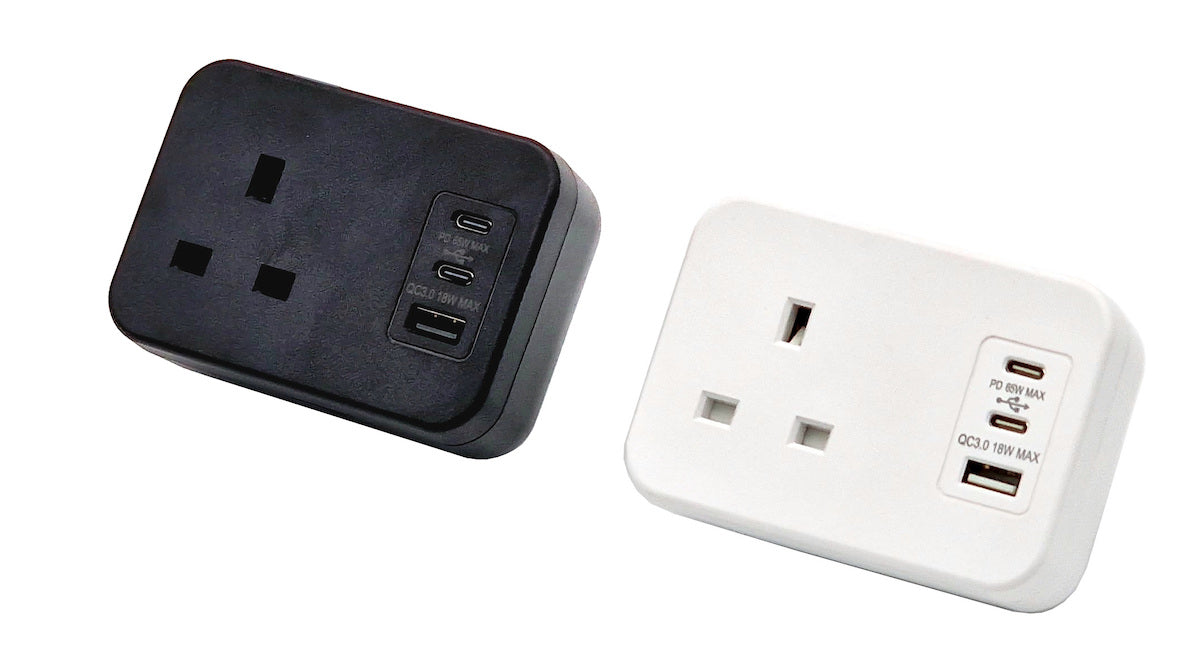

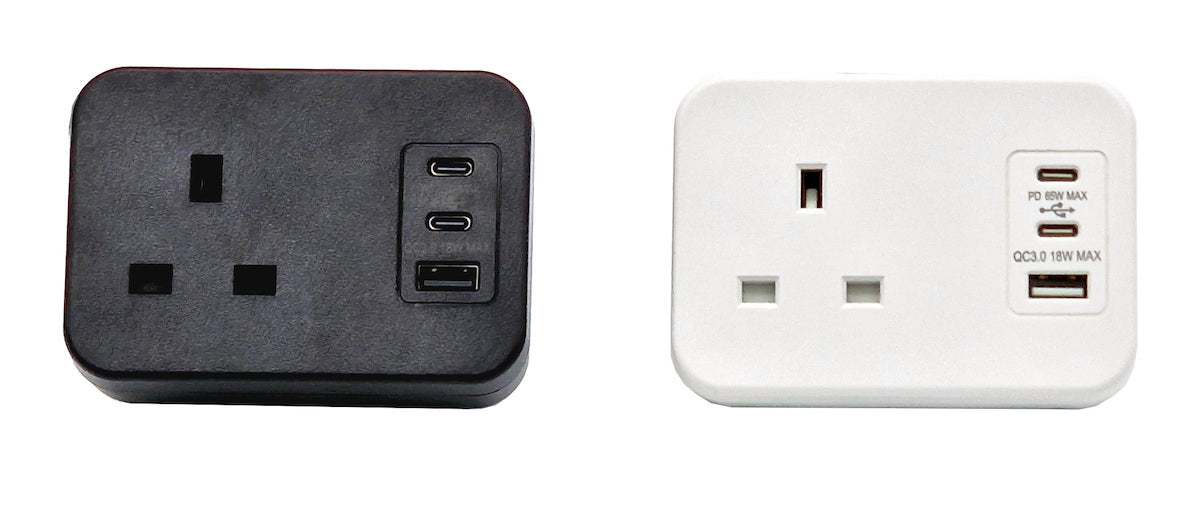

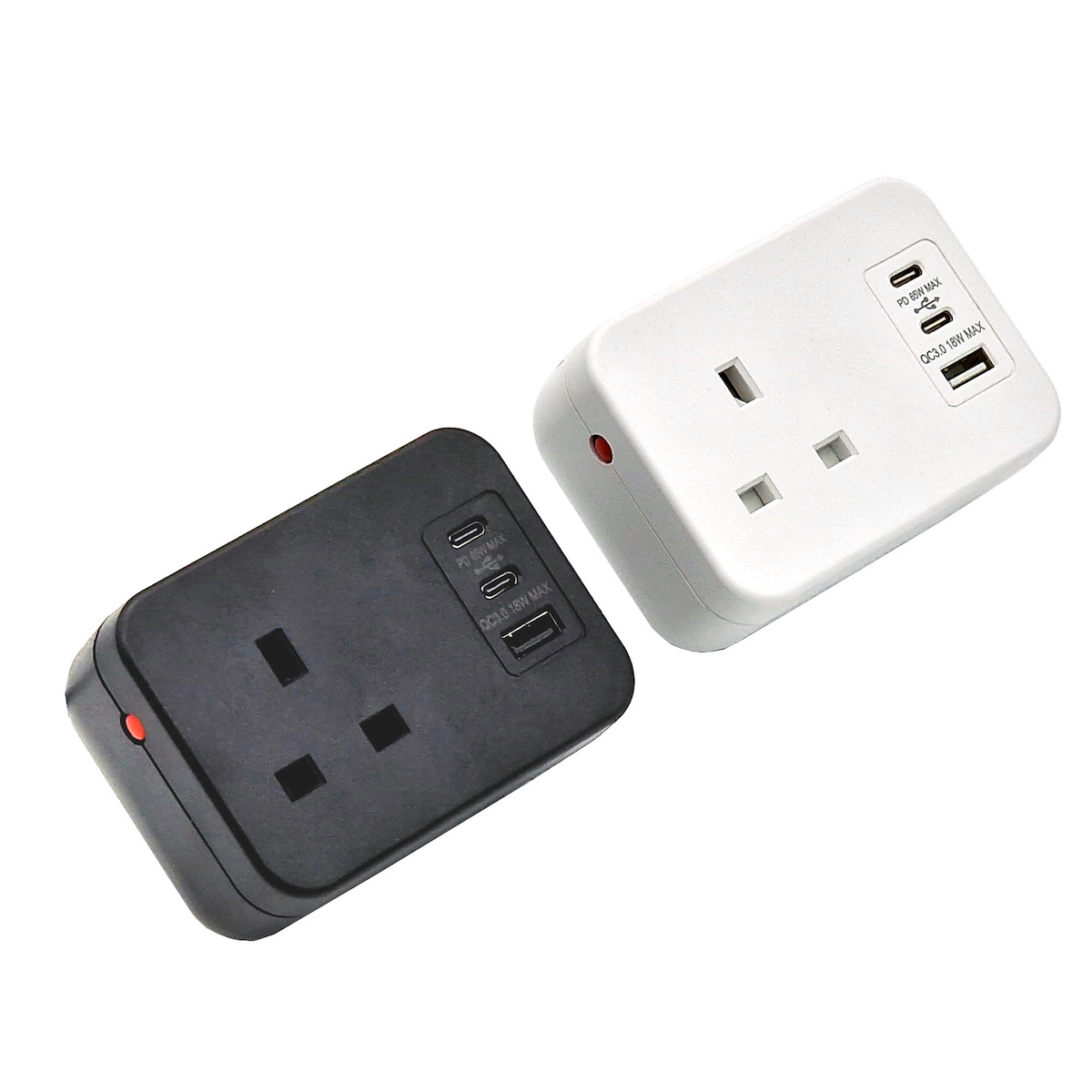

Available in Black or White.
Each unit has a black or white 500mm lead to male 3-pole connector.
Dimensions
Length: 100 mm
Width: 74 mm
Height: 74 mm
Delivery
3-5 Days
Warranty
1 Year
